Rockwool Frontrock L is a stone wool insulation lamella slab for external wall cladding in combination with mortar, mesh and special layered finish coating. Facade lamellas are generally adhesive fix and may therefore be used on substrates that are problematic for mechanical fix. They are ideally suited to new build constructions with a height limit of 20m.
Application

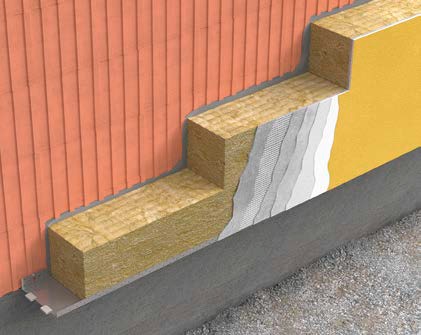

Lamella Frontrock L is robust and easy to install on even surfaces while it is also flexible enough to bend slightly, accommodating curved facades. Lamellas are always installed horizontally and the adhesive mortar is generally spread over their entire inner surface with a toothed trowel. Mortar can also be applied with a toothed trowel directly to the wall, if the surface is flat enough, before adhering lamellas to it. When choosing this application method, it is essential that the wall surface is flat and level. It is also important to have the proper consistency of mortar adhesive.
| Tekniska egenskaper | |
| Brandklass (Euroklass) |
brandsäker A1 |
| Värmekonduktivitet λD | 0.041 W/mK |
| Längd | 1200 mm |
| Bredd | 200 mm |
| Produktsortiment | |||
| Tjocklek mm |
Termisk resistans m2K/W |
m2 per Paket |
m2 per Pall |
| 50 | 1.20 | 1.92 | 57.60 |
| 100 | 2.40 | 0.96 | 28.80 |
| 120 | 2.90 | 0.96 | 24.00 |
| 150 | 3.65 | 0.96 | 19.20 |
| 200 | 4.85 | 0.96 | 14.40 |
Värmeledningsförmåga λd W/(m·K)
:
Värdet talar om hur bra materialet är på att leda värme. När man vill isolera är man ute efter ett så lågt värde som möjligt.
0.041
Brandklass
:
A non combustible products
A1 no contribution to fire
A2 no contribution to fire
B combustible products
B very limited contribution to fire
C limited contribution to fire
D Acceptable contribution to fire
E Acceptable contribution to fire
F no performance requirement
Euroklasse A1
Dimensioner
Bredd:
200 mm
Längd:
1200 mm
