Hulling, isolerhållare KI-10N

Features:

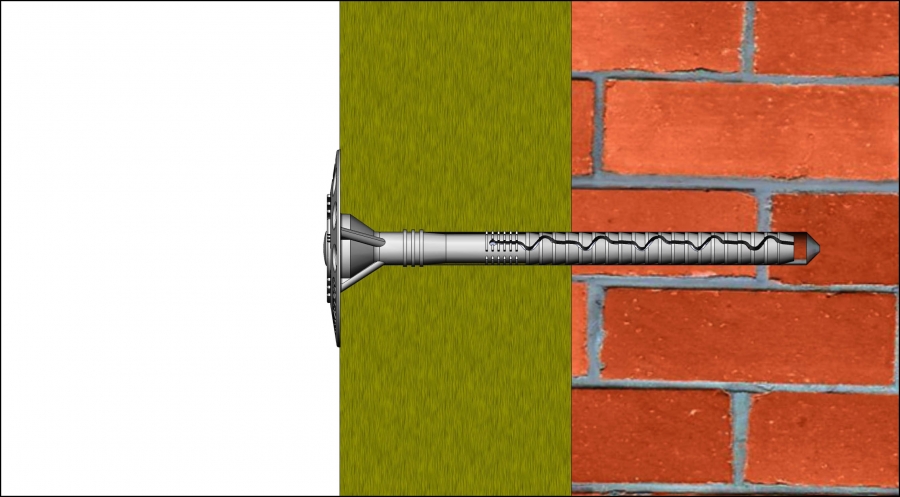

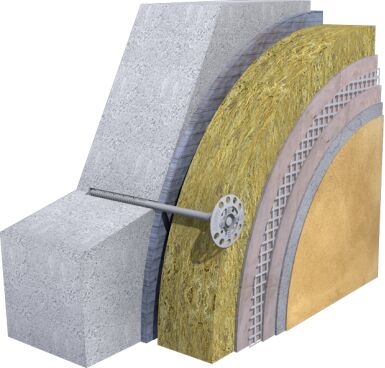

Hammer insulation fixing with an insulated metal pin designed for embedding of Jointless Facade Thermal Insulation Systems.

Product features:

• Product is recommended for installation of facade thermal insulation in substrate made from perforated and solid brick, light concrete and aerated concrete (ETA);
• Lowest embedment depth with maximum high performance parameters;
• Shortest drilling depth – saves installation time;
• High technical parameters for detachment to ensure the safety of the product;
• Optimal reduction of thermal bridge through the use of stroke-resistant screw overmoulding
• The possibility of using a fixing with an extra KWL insulation holding flange (recommended in the use of mineral-lamella wool);
• Economical consumption through optimal product parameters.

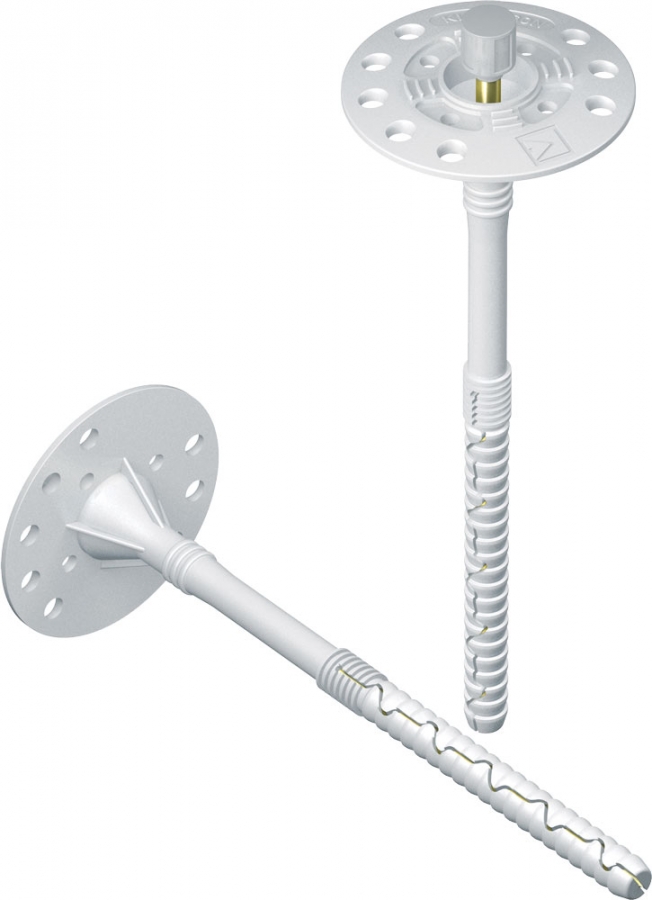

Material:

• Plug Sleeve: impact resistant copolymer of polypropylene PP .
• Nail Pin: electro zinc plated pin.
• Head coating: polymaide PA 6.0 ( Nylon) reinforced with fiber glass

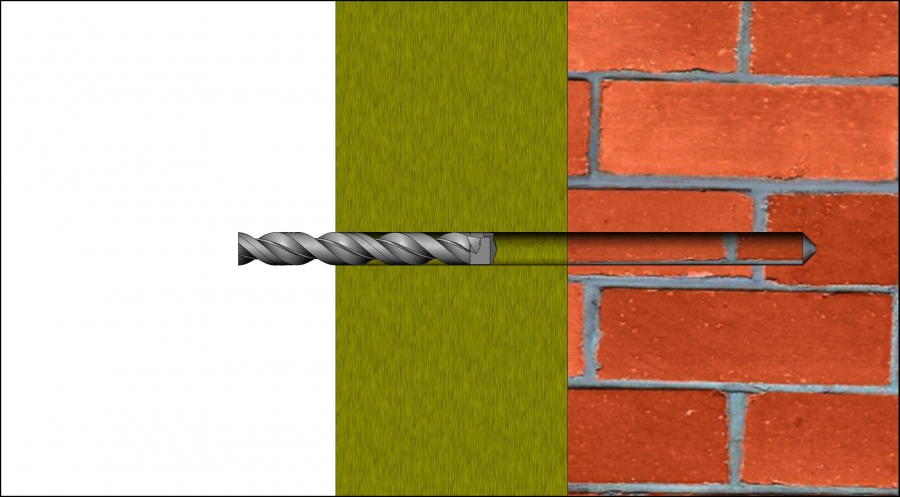

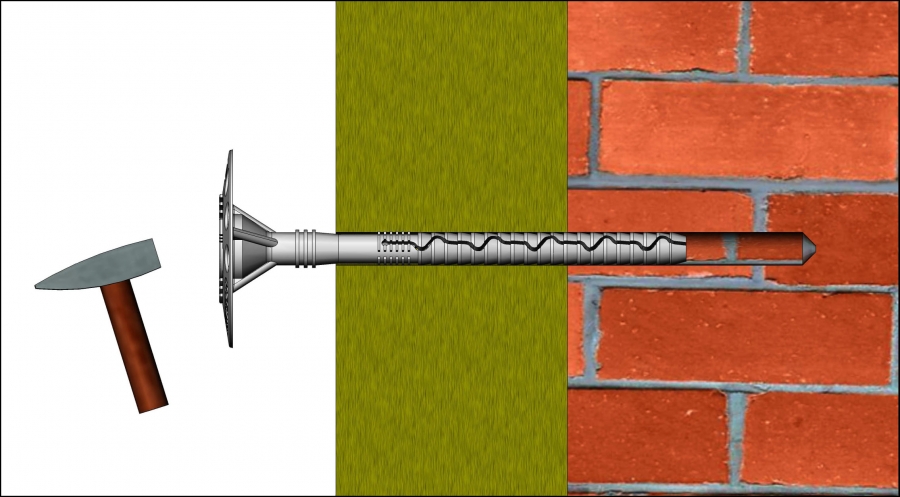

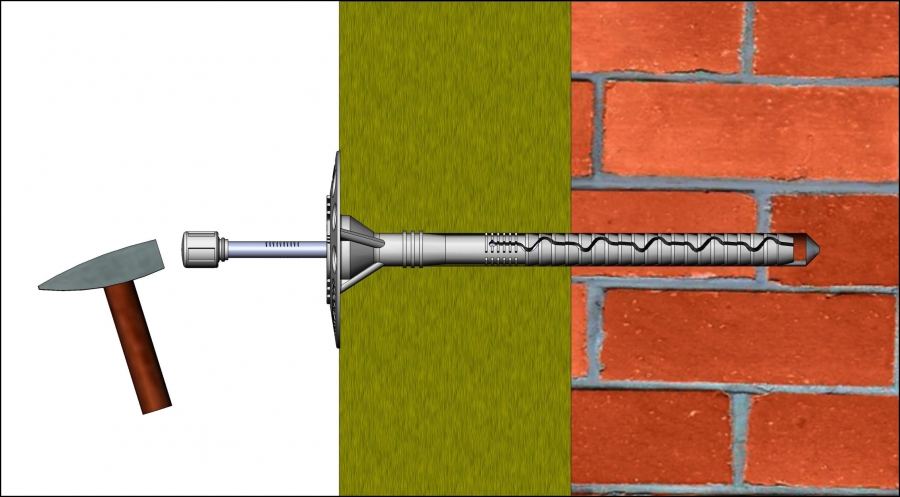

Installation recommendations:

• drill diameter: 10 mm,
• minimum embedment depth: ETA 25mm

Dedicated substrates:

• Uncracked concrete
• Aerated concrete
• Rock
• Solid ceramic brick
• Cellular brick
