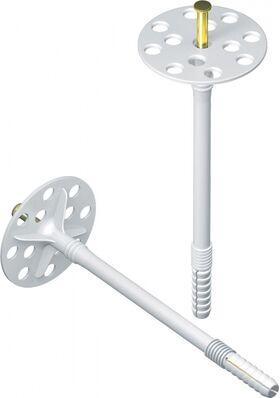

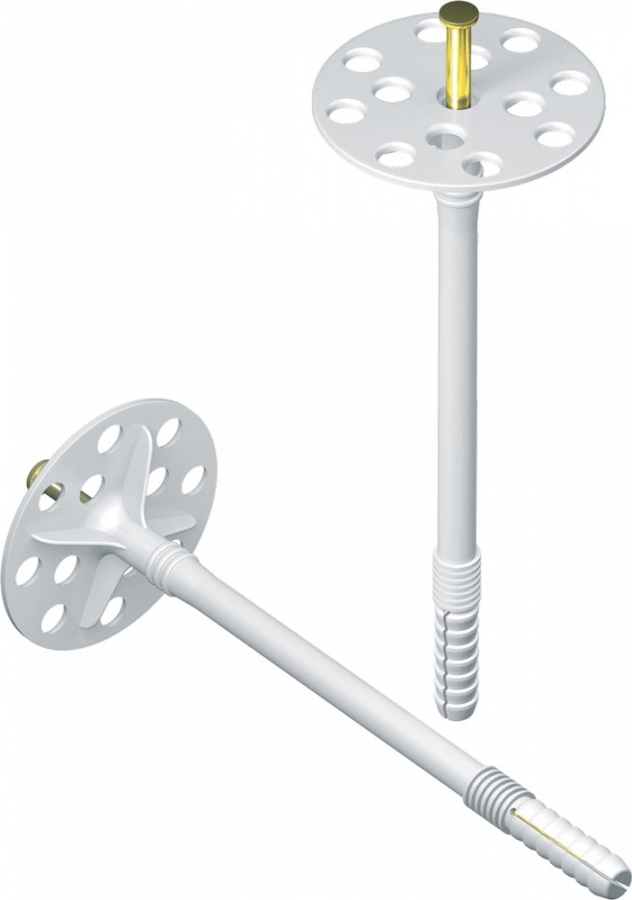

Hulling, isolerhållare KI-10M

Features:

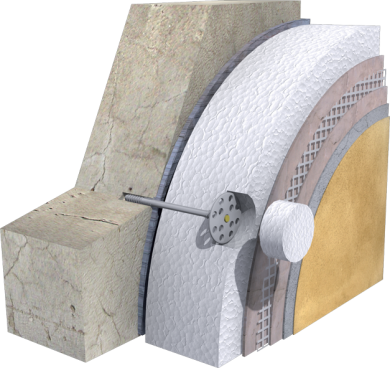

Hammer insulation fixing with a plastic pin designed for embedding of Jointless Facade Thermal Insulation Systems (BSO).

Product features:

• Product is recommended for installation of facade thermal insulation in concrete and solid brick (ETA) substrate;
• Lowest embedment depth with maximum high performance parameters;
• Shortest drilling depth – saves installation time;
• Optimal technical parameters for detachment to ensure the safety of the product;
• The possibility to reduce the thermal bridge through the use of additional KES polystyrene cap;
• Use the fixing in conjunction with the KES polystyrene cap additionally shortens the length of the fixing needed for the given insulation, which translates into a competitive cost of joining;
• The possibility of using a fixing with an extra KWL insulation holding flange (recommended in the use of mineral-lamella wool);
• Economical consumption through optimal product parameters;

Material:

• Plug Sleeve: impact resistant copolymer of polypropylene PP.
• Nail Pin: electro zinc plated pin.

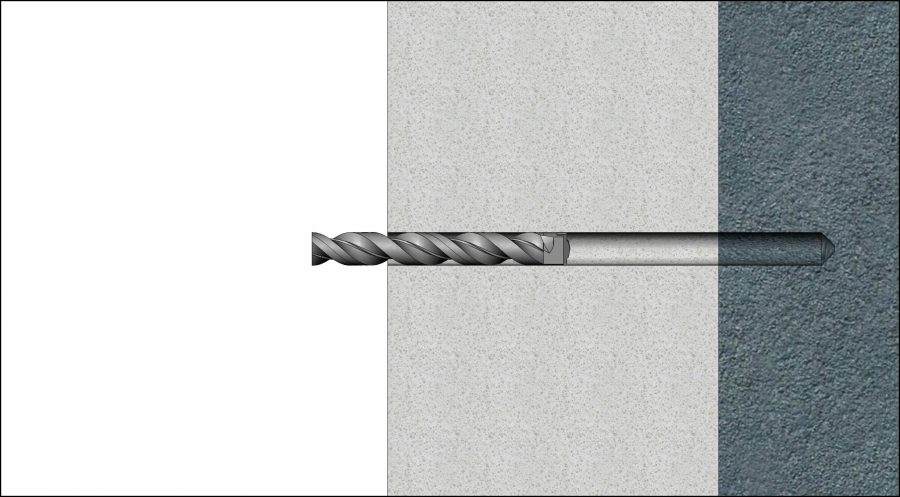

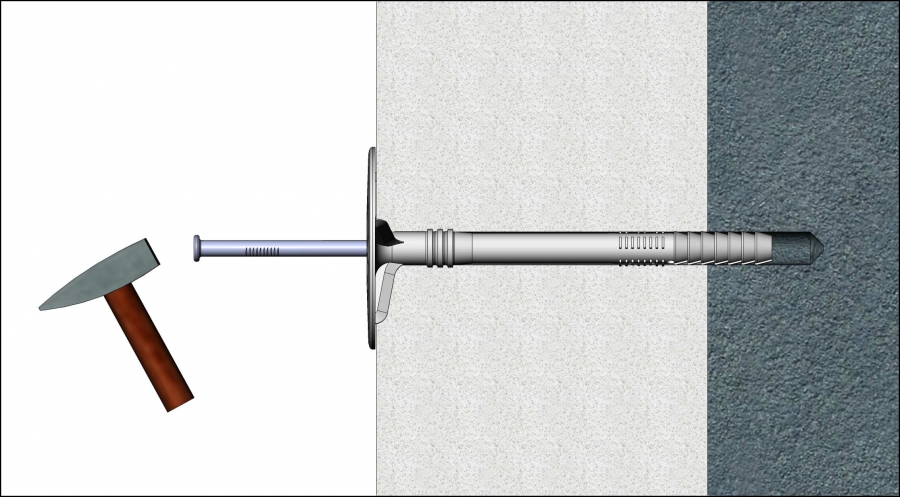

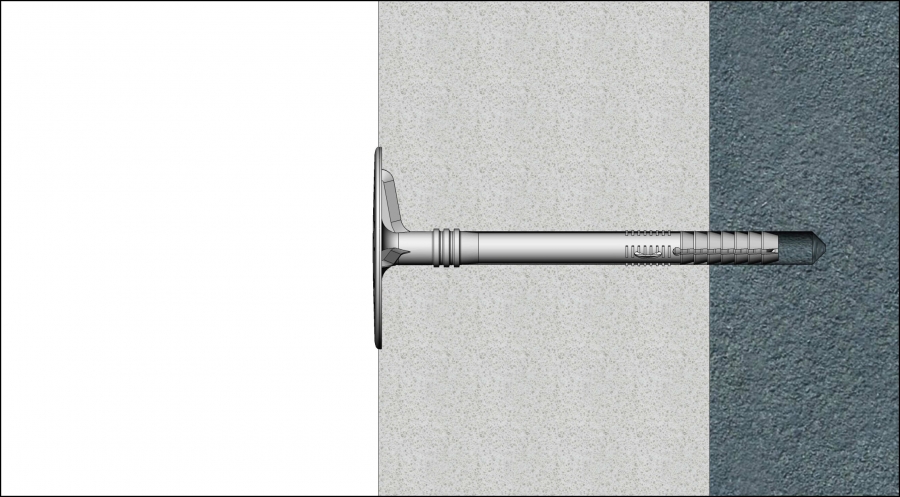

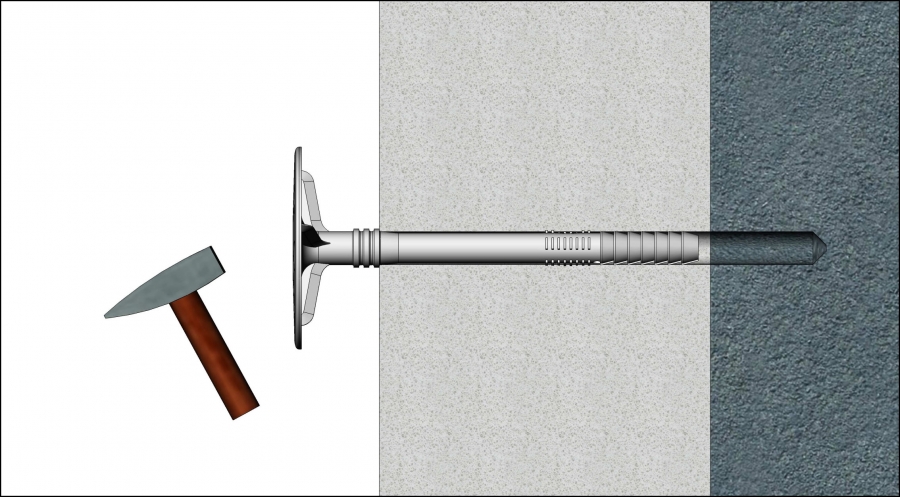

Installation recommendations:

• drill diameter: 10 mm,
• minimum embedment depth: ETA 25 mm

Dedicated substrates

• Uncracked concrete
• Aerated concrete
• Rock
• Solid ceramic brick
• Cellular brick
• Solid lime-sand brick
• Hollow lime-sand brick
