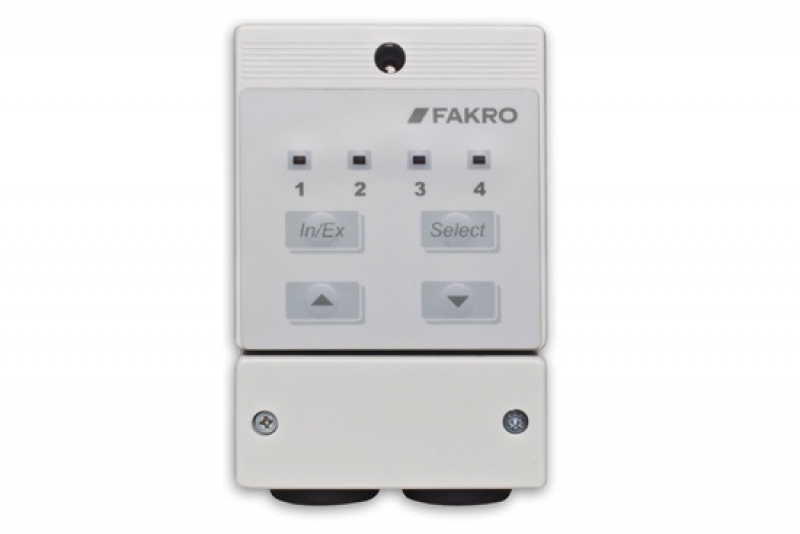

FAKRO adaptation module ZWMA

1.312,50 kr inc. VAT, excl. shipping
(1.050,00 kr excl. VAT and shipping)
ODF-850045

Ships within 10-12 business days after receipt of your payment

+
Add to wish list

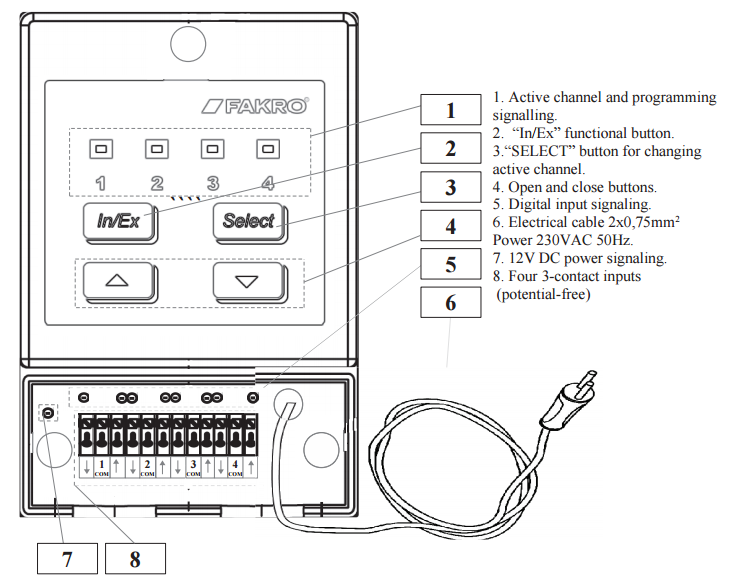

ZWMA adaptation module makes it possible to control FAKRO electric appliances equipped with Z-Wave module e.g. Electro Z-Wave window or roller shutter ARZ Z-Wave with the use of other control system. The module has four double (open - stop - close) digital inputs to which can be connected potential-free signals from various devices e.g external thermostat, time switch, the KNX/EIB system, etc. The module enable control of up to 231 devices simultaneously or in four groups maximum.

Technical parameters

Technical parameters:
power supply 230VAC
working temperature (+5° C) to (40° C)
working range to 40m
working frequency 868,42 MHz
Maximum cable length 5 m
dimensions 120 x 80 x 45 mm

VELUX glazing technical data

Glazing (--51) (--61) (--64) (--70) (--68) (--66) (--62) (--62D) (--67) (--69) (--70Q) (--82) (--15)
Thermal transmittance
W/m2K
1.0 0.6 0.6 1.0 0.7 0.6 0.5 1.0 0.5 0.7 1.0 0.3 0.7
Amount of
chambers
1 2 2 1 2 2 2 1 2 2 1 4 2
Warm TGI spacer
Inert gas
filled panes
Argon Argon Argon Argon Argon Argon Krypton Krypton Krypton Argon Argon Krypton Argon
Toughened
outer pane
Laminated opaque
inner pane
X X X
Safety class X X X P2A P2A P2A P2A P2A P2A P2A P4A P2A P2A
Ornamental X X X X X X X X X X X X X
Enhanced noise
reductiont
X X X X X X
Easy-to-clean
coating
X X X X X X X X X
Anti-dew effect X X X X X X X X X
Sound insulation
Rw (dB)
31 32 35 35 35 37 42 44 38 35 35 37 35

Bedienungs - und Programmierungsanleitung für das FAKRO ZWMA Anschlussmodul (fakro_zwma_de.pdf, 1,013 Kb) [Download]

Programming and operating manual of FAKRO ZWMA adaptive module (fakro_zwma_en.pdf, 967 Kb) [Download]
