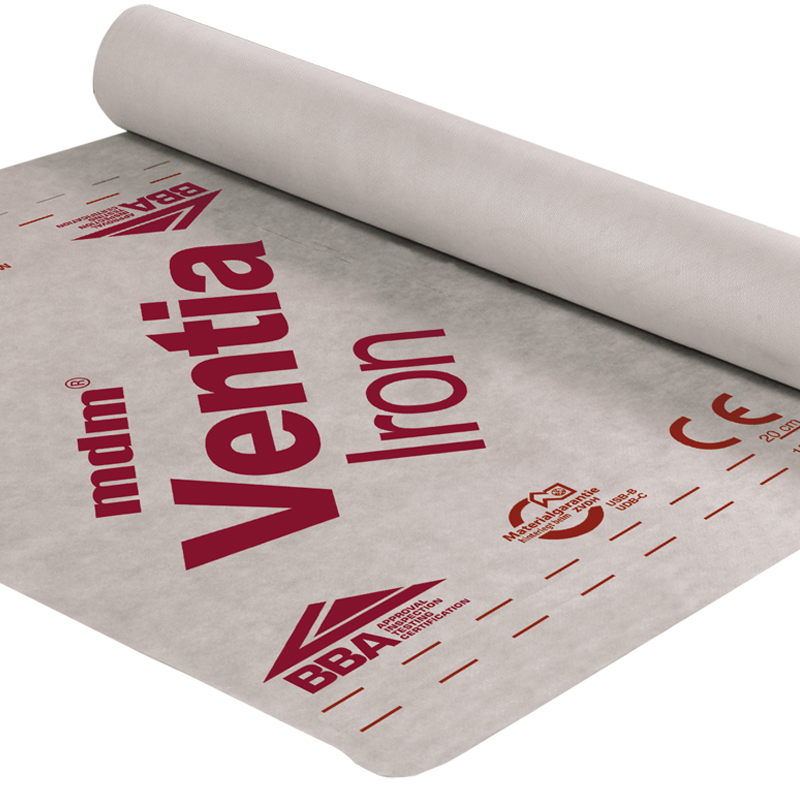

Roof underlay Ventia Iron

14,53 kr / m² inc. VAT, excl. shipping
(11,63 kr excl. VAT and shipping)
MDM-12230

Ships within: Please ask about delivery time

+

Minimum quantity for "Roof underlay Ventia Iron" is 75.

Add to wish list

A basic roof membrane from innovative line of Ventia. Threelayered, diffusive with weigth of about 120 g/m2, with good application parametres and BBA / ZVDH / CSTB certified. High class membrane.

Material - polypropylene nonwovens laminated with microporous polypropylene film.

Use with full boardnig - no

UV resistance - 3 months (concerns average yearly radiation in the Central European climat).

lenght: 50 m

width: 1,5 m

Palett dimensions [mm]: 1540x1170x1280

m²/palett: 2925 m² / 39 rol.

Product Thickness [mm] Weight [g/m2] Temperature resistance UV Resistance Reaction to fire Water vapour diffusion Sd Tensile strength
Ventia Q 0,90 230 from -40°C to +80°C 6 months Class E-d2 0,04 m MD - 380 N/50 mm (± 50)
CD - 260 N/50 mm (± 35)
Ventia Titanium Plus 0,85 185 from -40°C to +80°C 3 months Class E-d2 0,02 m MD - 430 N/50 mm (± 60)
CD - 260 N/50 mm (± 35)
Ventia Titanium 0,85 180 from -40°C to +80°C 3 months Class E-d2 0,02 m MD - 420 N/50 mm (± 70)
CD - 250 N/50 mm (± 35)
Ventia Cobalt Plus 0,80 170 from -40°C to +80°C 3 months Class E-d2 0,04 m MD - 370 N/50 mm (± 50)
CD - 230 N/50 mm (± 25)
Ventia Gold 0,70 150 from -40°C to +80°C 3 months Class E 0,02 m MD - 350 N/50 mm (± 50)
CD - 210 N/50 mm (-10+40)
Ventia Bronze 0,60 130 from -40°C to +80°C 3 months Class E-d2 0,02 m MD - 280 N/50 mm (± 40)
CD - 190 N/50 mm (± 35)
Ventia Iron 0,55 120 from -40°C to +80°C 3 months Class E-d2 0,02 m MD - 245 N/50 mm (± 45)
CD - 140 N/50 mm (± 25)
Ventia Metal 8 + 0,70 400 from -30°C to +80°C 3 months Class F 0,02 m MD - 400 N/50 mm (± 60)
CD - 210 N/50 mm (± 30)
Verso Top 0,45 85 - - Class F 4,50 m MD - 150 N/50 mm (± 30)
CD - 110 N/50 mm (± 50)
Verso Reflex Plus 0,40 77 - - Class F 6 m MD - 130 N/50 mm (± 25)
CD - 90 N/50 mm (± 20)

Dimensions

Width:
1500mm
Length:
50000mm

Roof underlays

Basis weight:
120 g/m²
Thickness:
550 μm
Sd:
0.02 m
