Polyisocyanurat paneler PIR term-WS

✔ Thermal conductivity: 0.024
135,21 kr / m² inc. VAT, excl. shipping
(108,16 kr excl. VAT and shipping)
PIR-WS
+

Minimum quantity for "Polyisocyanurat paneler PIR term-WS" is 1.

Add to wish list

Polyisocyanurate panels are used as a component of thermal insulation systems. They provide efficient thermal insulation as compared to other construction materials such as mineral wool or foamed polystyrene. They allow for cost-effective, long-lasting, and safe use of a house or an apartment.

Polyisocyanurate panels are used to insulate:

  • foundations;
  • walls;
  • exterior walls;
  • ceilings;
  • terraces and balconies;
  • flat roofs, and pitched roofs.

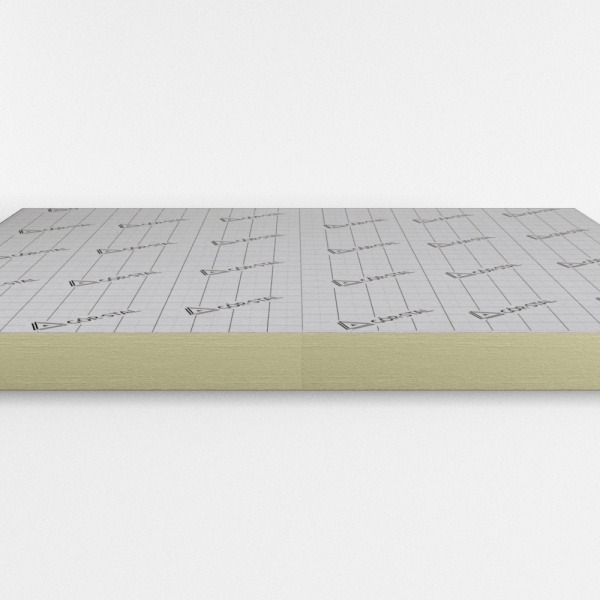

PIR term-WS construction

The double-sided panel lining is made of fiberglass. The core of the panel is made of rigid polyisocyanurate foam (PIR) with very good insulating and fire-resistance properties.

Joint types

Milling can be performed as follows:

FIT LAP TAG
Straight edges Overlap edges Tounge and Groove

Technical data

Parameter Value
Apparent density of core kg/m3 30 (+6/-2)
Panel thickness mm 20 40 50 60 80 100 120 150 180 200 220 250
Declared heat conductivity coefficient λD W/m*K 0.026 0.025 0.024
Thermal resistance RD m2*K/W 0.75 1.50 1.90 2.30 3.20 4.00 5.00 6.25 7.50 8.30 9.15 10.40
Heat transfer coefficient U W/m2*K 1.30 0.65 0.52 0.43 0.31 0.25 0.20 0.16 0.13 0.12 0.11 0.10
Fire reaction classification E
Compressive strength ≥ 120 kPa
Thermal conductivity:
0.024
Fire resistance:
Euroclass E

VELUX glazing technical data

Glazing (--51) (--61) (--64) (--70) (--68) (--66) (--62) (--62D) (--67) (--69) (--70Q) (--82) (--15)
Thermal transmittance
W/m2K
1.0 0.6 0.6 1.0 0.7 0.6 0.5 1.0 0.5 0.7 1.0 0.3 0.7
Amount of
chambers
1 2 2 1 2 2 2 1 2 2 1 4 2
Warm TGI spacer
Inert gas
filled panes
Argon Argon Argon Argon Argon Argon Krypton Krypton Krypton Argon Argon Krypton Argon
Toughened
outer pane
Laminated opaque
inner pane
X X X
Safety class X X X P2A P2A P2A P2A P2A P2A P2A P4A P2A P2A
Ornamental X X X X X X X X X X X X X
Enhanced noise
reductiont
X X X X X X
Easy-to-clean
coating
X X X X X X X X X
Anti-dew effect X X X X X X X X X
Sound insulation
Rw (dB)
31 32 35 35 35 37 42 44 38 35 35 37 35
