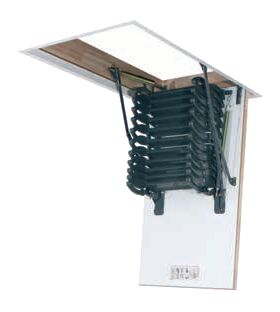

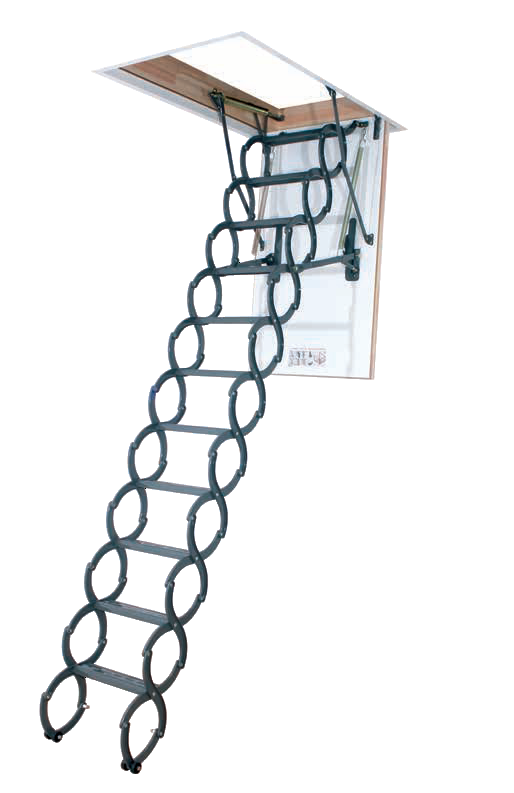

The FAKRO scissors loft ladder LST is complete with white insulated hatch, wooden ladder box, metal finishing lining and quick-installation brackets. The scissors ladder construction takes less space allowing the ladder to be installed in smaller openings (the smallest ladder size is 51 x 80cm).
Features
- white hatch
- finishing lining slats
- peripheral seal
- non-slip treads
- system of adopting the ladder length to the ceiling height
- possibility of adding or detaching segments
- system of quick installation in the ceiling
- possibility of installing additional accessories
- 3 yeahr warranty
Technical specification:
- Satisfy the requirements of EN 14975
- Maximum loading: 200 kg
- Loft ladder U-Value: U=1.1 W/m²K
- Insulation thickness: 3 cm
- Hatch thickness: 3.6 cm
- Box height: 18 cm

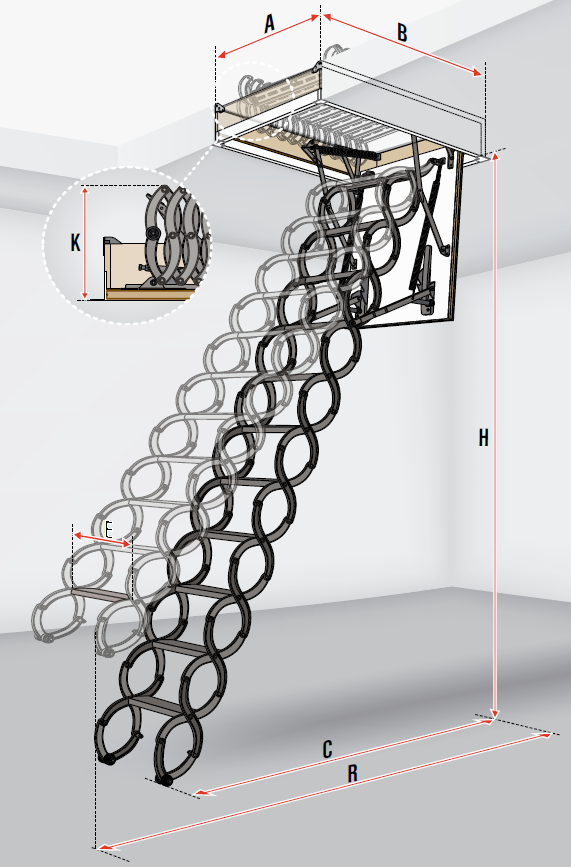

Technical data
| Ceiling opening dimension | AxB [cm] | 51x80 | 60x90 | 60x120 | 70x80 | 70x120 |
| Room height for standard ladder length | H [cm] | 250-280 | ||||
| Box external dimension | WxL [cm] | 51x79.4 | 59x89.4 | 59x119.4 | 69x79.4 | 69x119.4 |
| Box interior dimension | MxN [cm] | 46x74 | 54x84 | 54x114 | 64x74 | 64x114 |
| Folded ladder height | K [cm] | 38.2 | ||||
| Swing space | R [cm] | 150 | ||||
| Distance after ladder unfolding | C [cm] | 146-134 | ||||
| Number of treads | - | 11 | ||||
| Tread length | E [cm] | 26 | 30 | 38 | ||
| Tread width | S [cm] | 8 | ||||
| Distance between each tread | G [cm] | 25 | ||||
Installation how-to-video
U-value:
1.1 W/(m²K)
