FAKRO Loft ladder LMK

Old price: 4.769,74 kr ( 3.815,79 kr excl. VAT and shipping)
4.292,76 kr inc. VAT, excl. shipping
(3.434,21 kr excl. VAT and shipping) You save: 381,58 kr (10%)
ODF 8614
+
Add to wish list

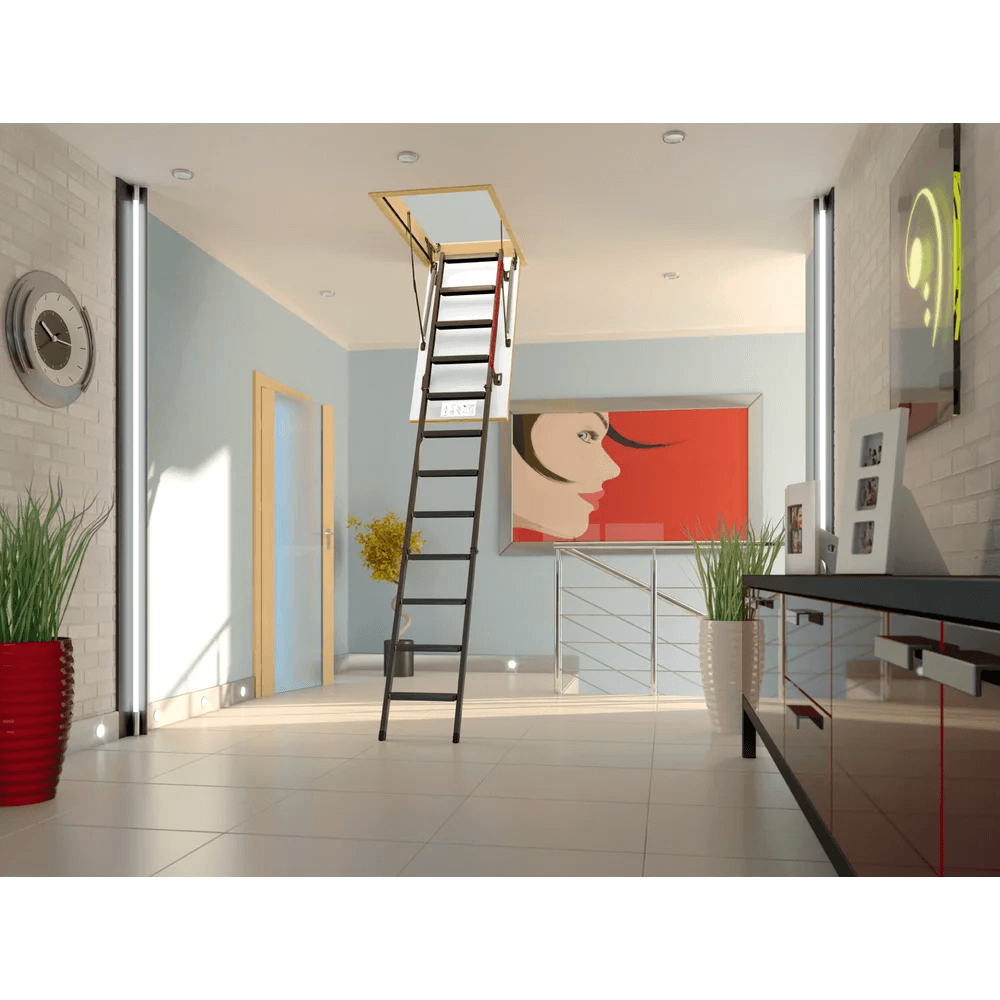

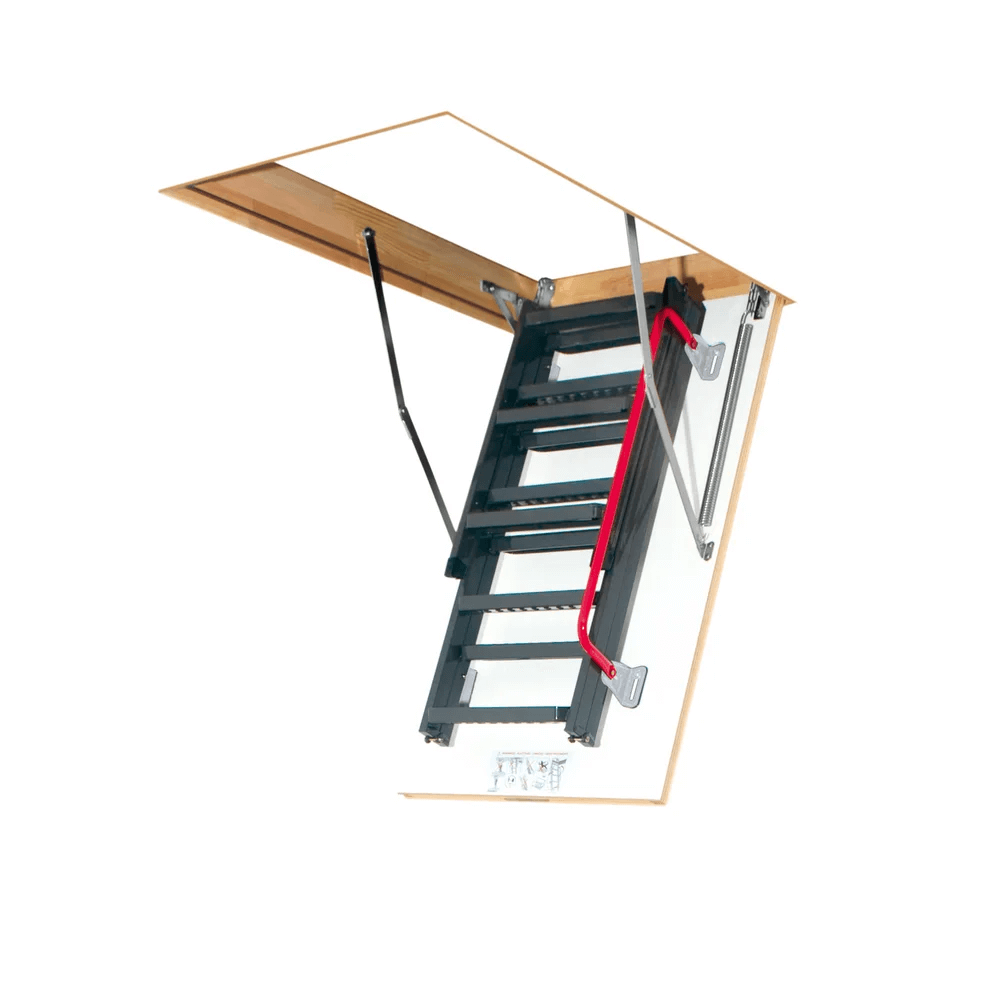

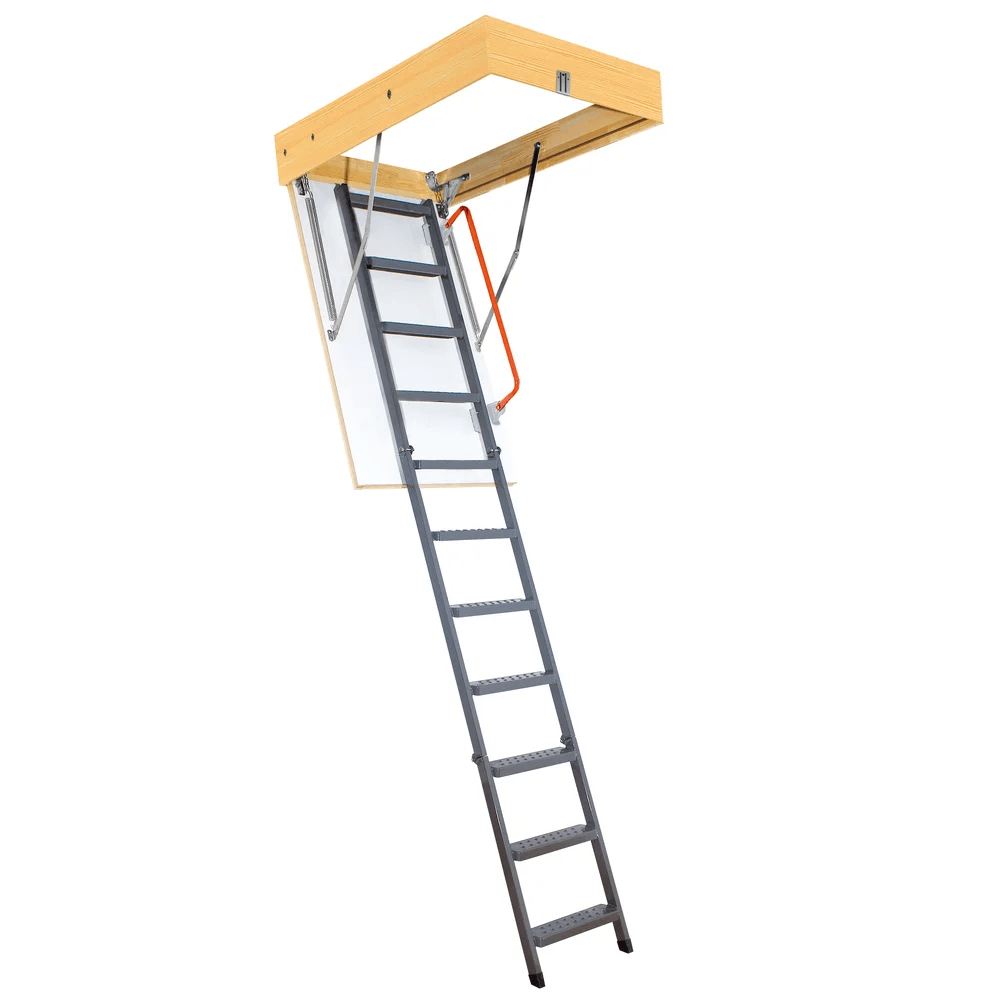

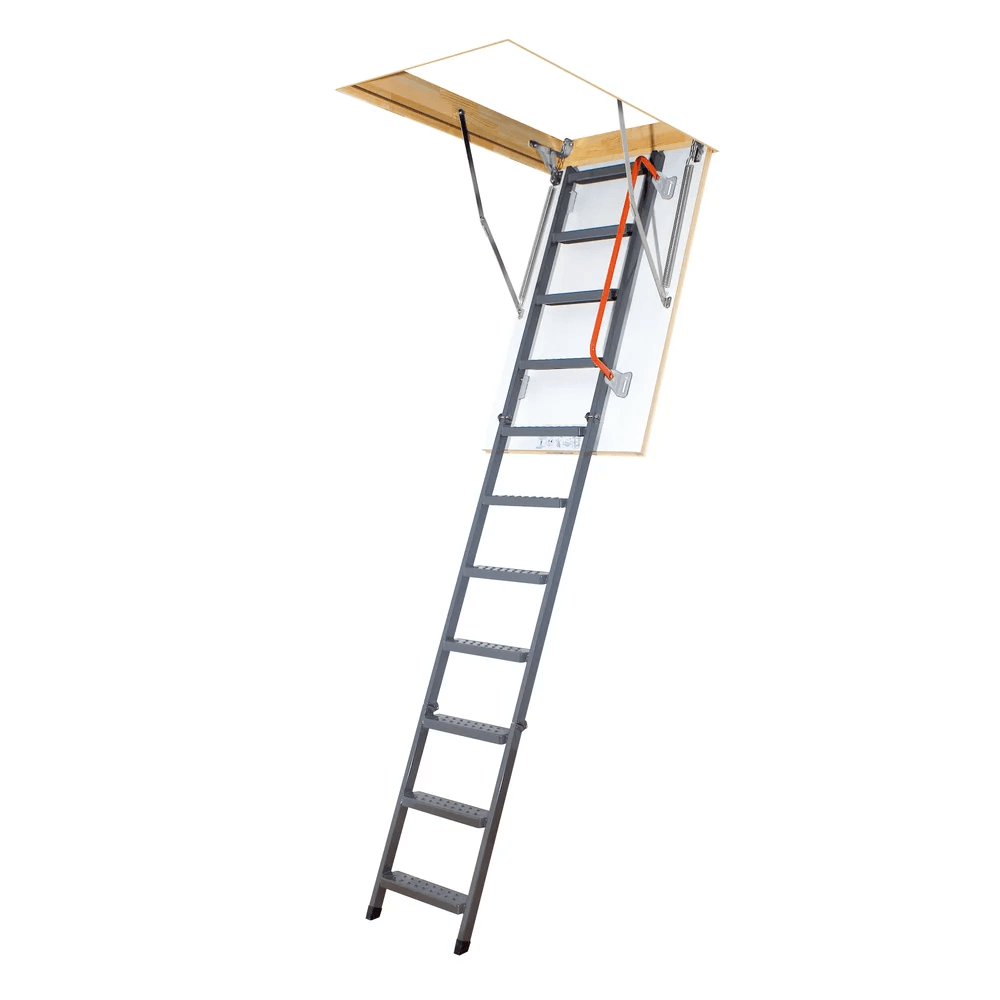

The FAKRO loft ladder LMK Komfort unlike the LMS ladder has a white hatch and handrail for easier movement on the ladder.

Features:

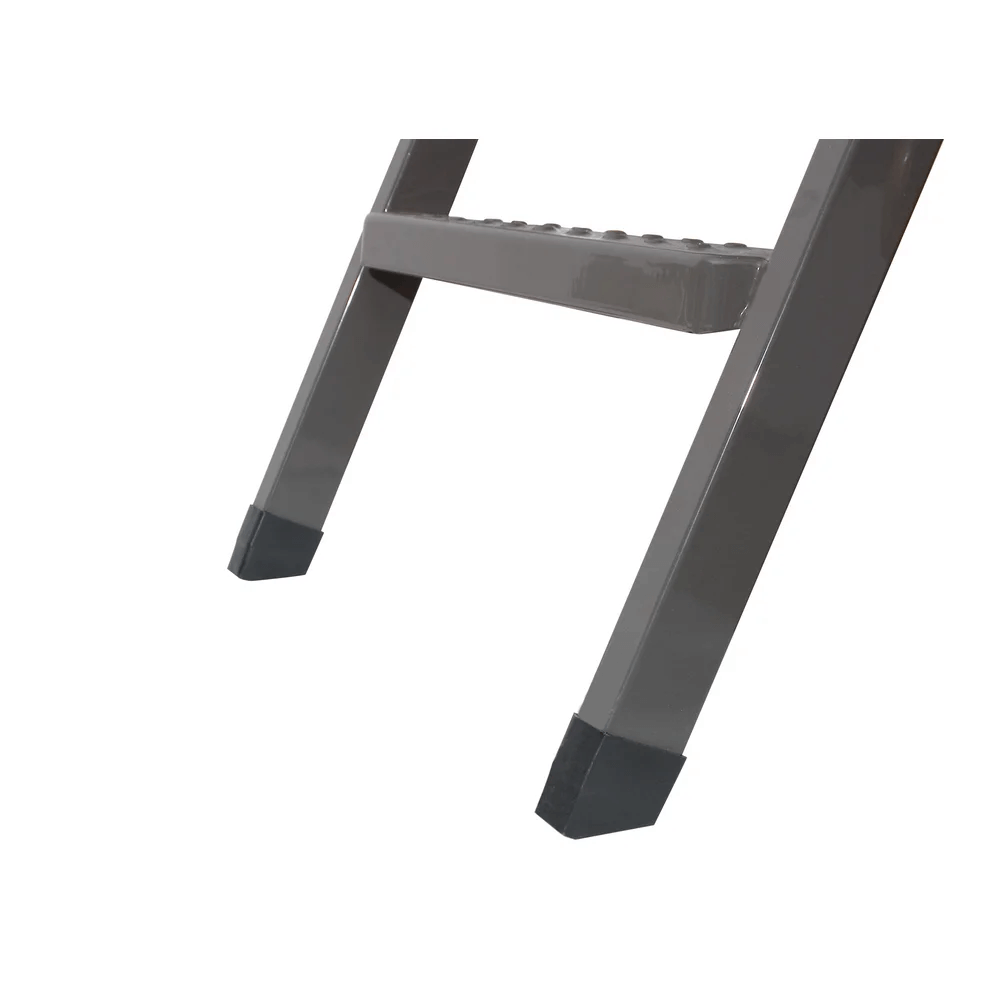

  • stile ends

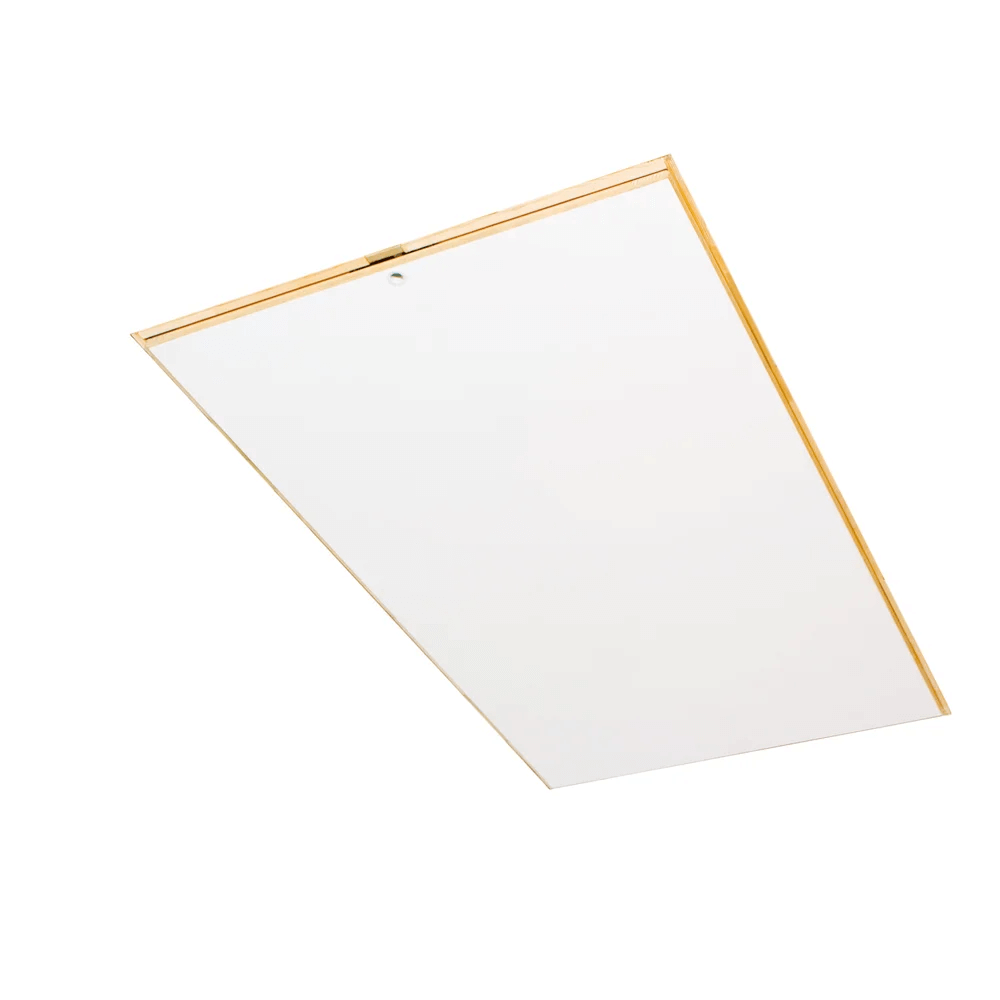

  • white hatch
  • peripheral seal
  • handrail

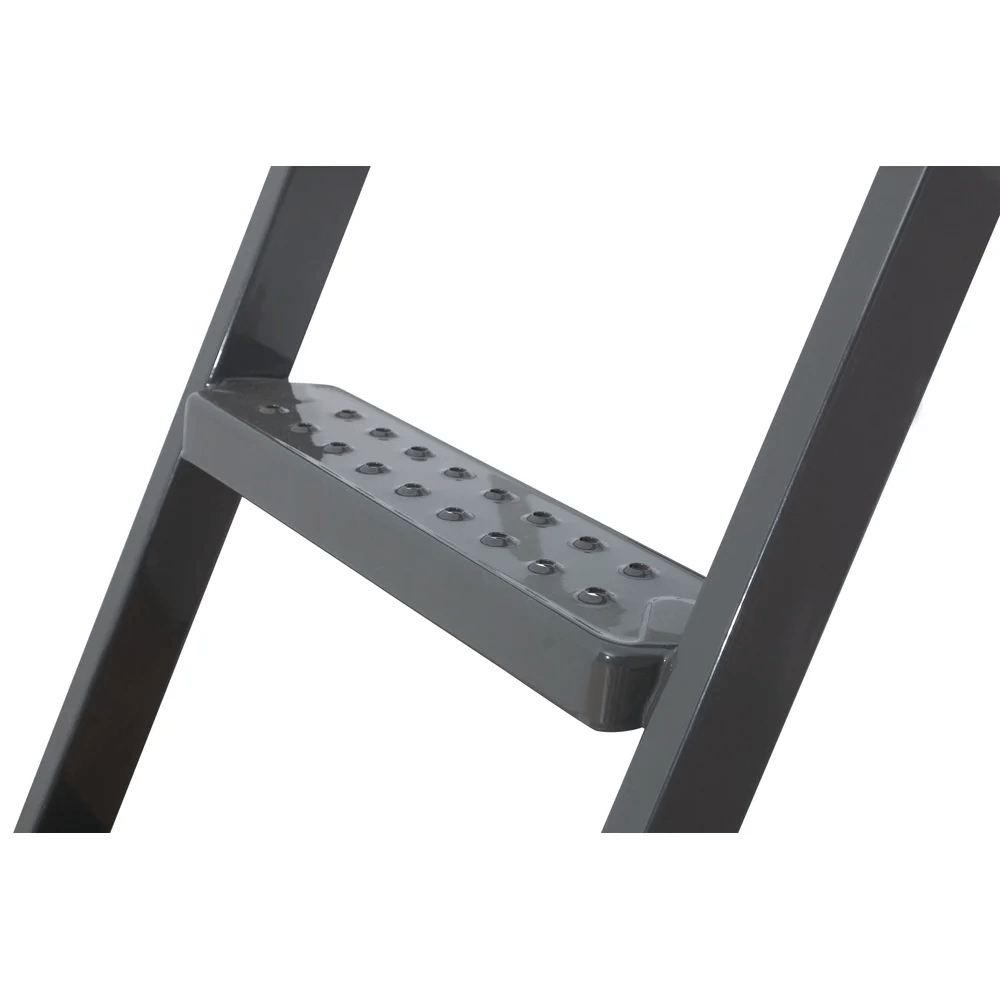

  • non-slip treads
  • fully assembled and ready for quick installation in the ceiling
  • possibility of installing additional accessories
  • 3 yeahr warranty

Technical specification:

  • Satisfy the requirements of EN 14975
  • Maximum loading: 200 kg
  • Loft ladder U-Value: U=1.1 W/m²K
  • Insulation thickness: 3 cm
  • Hatch thickness: 3.6 cm

Technical data

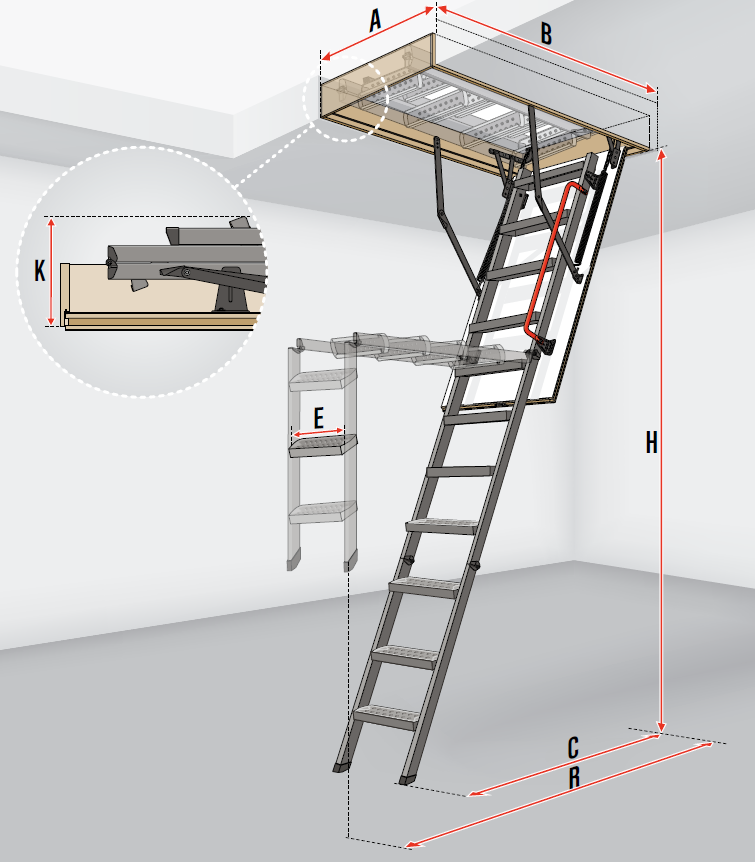

Ceiling opening dimension / room height AxB hH [cm] 60x120 h=280 70x120 h=280 70x130 h=280 70x140 h=280 60x130 h=305 70x130 h=305 70x140 h=305
Box external dimension WxL [cm] 58x118.4 68x118.4 68x128.4 68x138.4 58x128.4 68x128.4 68x138.4
Box interior dimension MxN [cm] 54x114 64x114 64x124 64x134 54x124 64x124 64x134
Box height [cm] 14
Folded ladder height K [cm] 25.5
Swing space R [cm] 157 175
Distance after ladder unfolding C [cm] 118.5 127
Tread length E [cm] 34
Tread width S [cm] 8
Distance between each tread G [cm] 25
U-value:
1.1 W/(m²K)

VELUX glazing technical data

Glazing (--51) (--61) (--64) (--70) (--68) (--66) (--62) (--62D) (--67) (--69) (--70Q) (--82) (--15)
Thermal transmittance
W/m2K
1.0 0.6 0.6 1.0 0.7 0.6 0.5 1.0 0.5 0.7 1.0 0.3 0.7
Amount of
chambers
1 2 2 1 2 2 2 1 2 2 1 4 2
Warm TGI spacer
Inert gas
filled panes
Argon Argon Argon Argon Argon Argon Krypton Krypton Krypton Argon Argon Krypton Argon
Toughened
outer pane
Laminated opaque
inner pane
X X X
Safety class X X X P2A P2A P2A P2A P2A P2A P2A P4A P2A P2A
Ornamental X X X X X X X X X X X X X
Enhanced noise
reductiont
X X X X X X
Easy-to-clean
coating
X X X X X X X X X
Anti-dew effect X X X X X X X X X
Sound insulation
Rw (dB)
31 32 35 35 35 37 42 44 38 35 35 37 35
