Active vapour barrier VERSO REFLEX PLUS

10,38 kr / m² inc. VAT, excl. shipping
(8,30 kr excl. VAT and shipping)
MDM-12620

Ships within: Please ask about delivery time

+

Minimum quantity for "Active vapour barrier VERSO REFLEX PLUS" is 75.

Add to wish list

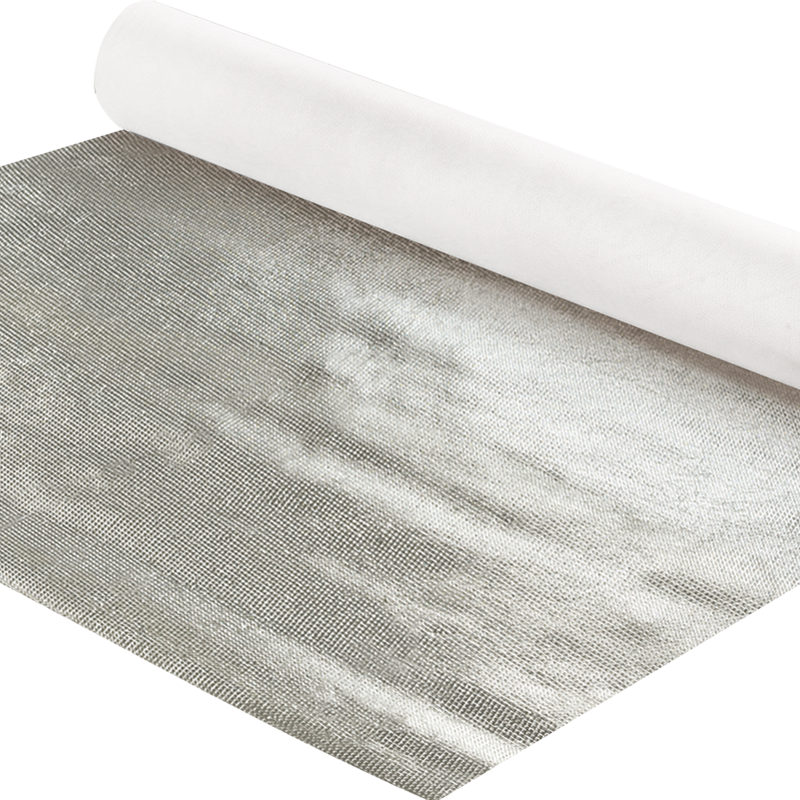

Ventia VB Reflex helps to save energy thanks to its reflecting aluminium layer. The layer reflects part of the infrared radiation. The Sd coefficient of Ventia VB Reflex is chosen to maximally reduce water vapour permeability, and when used on the roof with Ventia breathable membranes (with Sd < 0,02 m), together they constitute the highest quality insulation system.

Material - polypropylene nonwovens laminated with low diffusion polyprolene film; the bottom side is coated with a thin layer of aluminium.

Manufactured using a cutting edge ultrasonic technology. The production line is one of the most advanced in Europe. This modern technology ensures precise and durable lamination of layers and at the same time elasticity of a membrane. A special bonding pattern guarantees better resistance against breakage. Also raw materials used in production and their selection method has been unchanged.

lenght: 50 m

width: 1,5 m



Palett dimensions: 1540x1170x1300

m²/palett: 3900 m² / 52 rol.

Product Thickness [mm] Weight [g/m2] Temperature resistance UV Resistance Reaction to fire Water vapour diffusion Sd Tensile strength
Ventia Q 0,90 230 from -40°C to +80°C 6 months Class E-d2 0,04 m MD - 380 N/50 mm (± 50)
CD - 260 N/50 mm (± 35)
Ventia Platinium Plus 1,00 225 from -40°C to +80°C 3 months Class E-d2 0,04 m MD - 500 N/50 mm (± 75)
CD - 340 N/50 mm (± 40)
Ventia Titanium Plus 0,85 185 from -40°C to +80°C 3 months Class E-d2 0,02 m MD - 430 N/50 mm (± 60)
CD - 260 N/50 mm (± 35)
Ventia Titanium 0,85 180 from -40°C to +80°C 3 months Class E-d2 0,02 m MD - 420 N/50 mm (± 70)
CD - 250 N/50 mm (± 35)
Ventia Cobalt Plus 0,80 170 from -40°C to +80°C 3 months Class E-d2 0,04 m MD - 370 N/50 mm (± 50)
CD - 230 N/50 mm (± 25)
Ventia Gold 0,70 150 from -40°C to +80°C 3 months Class E 0,02 m MD - 350 N/50 mm (± 50)
CD - 210 N/50 mm (-10+40)
Ventia Bronze 0,60 130 from -40°C to +80°C 3 months Class E-d2 0,02 m MD - 280 N/50 mm (± 40)
CD - 190 N/50 mm (± 35)
Ventia Iron 0,55 120 from -40°C to +80°C 3 months Class E-d2 0,02 m MD - 245 N/50 mm (± 45)
CD - 140 N/50 mm (± 25)
Ventia Metal 8 + 0,70 400 from -30°C to +80°C 3 months Class F 0,02 m MD - 400 N/50 mm (± 60)
CD - 210 N/50 mm (± 30)
Ventia VB 0,45 85 - - Class F 4,50 m MD - 150 N/50 mm (± 30)
CD - 110 N/50 mm (± 50)
Ventia Reflex 0,40 77 - - Class F 6 m MD - 130 N/50 mm (± 25)
CD - 90 N/50 mm (± 20)

Dimensions

Width:
1500mm
Length:
50000mm

Roof underlays

Basis weight:
77 g/m²
Thickness:
400 μm
Sd:
6 m
